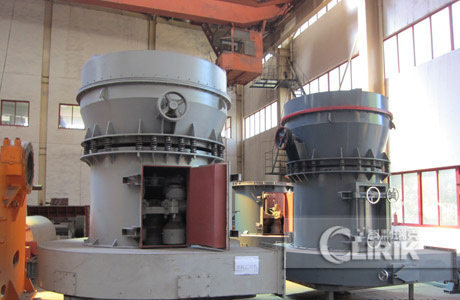

Ring And Roller Mill For Stone Powder Making
Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Ring And Roller Mill For Stone Powder Making,The Clirik Ring And Roller Mill For Stone Powder Making have five models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.
Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The
Ring And Roller Mill For Stone Powder Making is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Raw Material:such as gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.
Output:30 - 425 mesh
Introduction of Ring And Roller Mill For Stone Powder Making
Ring And Roller Mill For Stone Powder Making, also known as Raymond Grinder or Pendulum Grinder, is designed by Clirik Machinery with Germany technology. The Ring And Roller Mill For Stone Powder Making is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.
Ring And Roller Mill For Stone Powder Making Features
1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.
Structure of Ring And Roller Mill For Stone Powder Making
Ring And Roller Mill For Stone Powder Making is mainly composed of main unit, analyzer, fan, discharging cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.
Working principle of Ring And Roller Mill For Stone Powder Making
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.
Technical Parameter of Ring And Roller Mill For Stone Powder Making
|
Type |
Roller |
Max. feeding size(mm) |
Fineness of product(mm) |
Output (t/h) |
Power of machine(KW) |
Size(mm) |
|
No. |
Dimension(mm) |
Height(mm) |
|
YGM7815 |
3 |
260 |
150 |
15 |
0.613-0.033 |
1-3 |
18.5 |
4300*3500*5100 |
|
YGM8314 |
3 |
270 |
140 |
20 |
0.613-0.033 |
1.2-4.6 |
22 |
5300*4100*5200 |
|
YGM9517 |
4 |
310 |
170 |
25 |
0.613-0.033 |
2.1-5.6 |
37 |
7100*5900*7900 |
|
YGM4121 |
5 |
410 |
210 |
30 |
0.613-0.033 |
2.8-10.5 |
75 |
9200*7250*9700 |
|
MTM1600 |
6 |
440 |
270 |
35 |
0.613-0.033 |
5-20 |
132 |
12550*5700*8350 |
Notice: Any change of Ring And Roller Mill For Stone Powder Making technical data shall not be advised additionally.
Ring And Roller Mill For Stone Powder Making Price
If you want to know the Ring And Roller Mill For Stone Powder Making price or have any questions about Ring And Roller Mill For Stone Powder Making, please do not hesitate to contact us.
